Bussmann

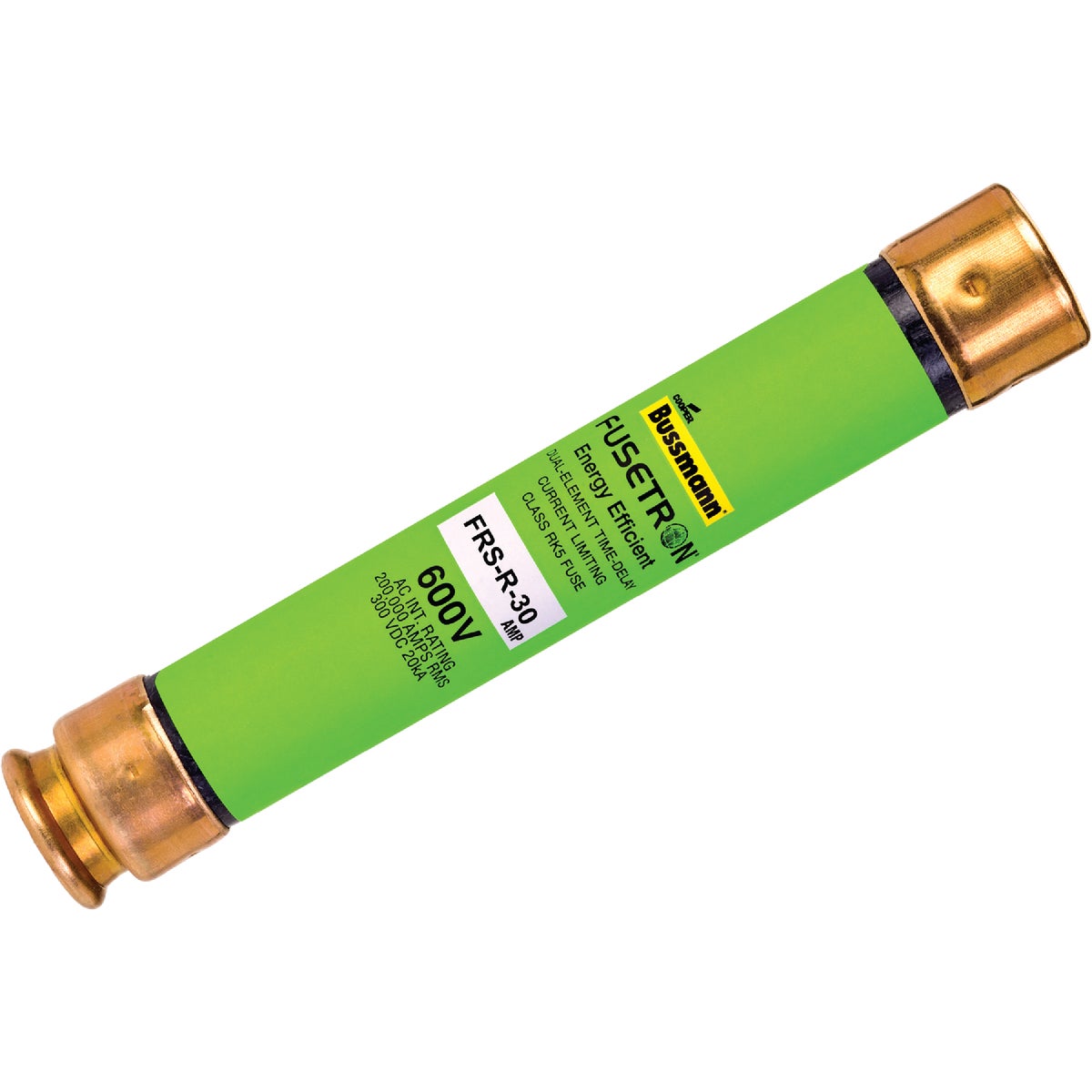

Bussmann 30A Fusetron FRS-R Cartridge Time Delay Cartridge Fuse

Category Fuses
563552
Bussmann

Bussmann 30A Fusetron FRS-R Cartridge Time Delay Cartridge Fuse

Item Code: 563552
Category Fuses

Specifications

Weight

1.66lb

Height

2in

Width

4.35in

Length

5.4in

Amperage

30

Brand

Bussmann

Category

Cartridge Fuse

Certification

UL Listed

Class

RK5

Diameter

0.81 in.

Fuse Function

Time Delay

Fuse Type

Fusetron FRS-R Cartridge

Length

5 in.

Voltage

600

Description

Fusetron dual-element, time-delay current limiting fuses. Provide motor overload ground fault and short-circuit protection. When used in circuits subject to surge currents, such as those caused by motors, transformers, and other inductive components, these fuses can be sized close to full-load amperes to give maximum overcurrent protection. The time delay feature makes it possible to use fuse ampere ratings which are much smaller than those of nontime delay fuses. Provide a higher degree of short-circuits in which surge currents or temporary overloads occur. Helps protect motors against burnout from overloads. 600V. UL (Underwriter's Laboratories) listed, CSA (Canadian Standards Association) certified.
Call for price
Starting from
$22.99 Pack of 1
/
LIST PRICE $22.99
%
- +
Check stock in other branches
We're sorry, we have no stock available at this branch. Please select a different branch.
Your Pick-up In Store branch is 1023 Main St, Vincennes
Add to quick list
Compare
Bussmann

Bussmann 30A Fusetron FRS-R Cartridge Time Delay Cartridge Fuse

Category Fuses
563552
Bussmann

Bussmann 30A Fusetron FRS-R Cartridge Time Delay Cartridge Fuse

Item Code: 563552
Category Fuses
Call for price
Starting from
$22.99 Pack of 1
/
LIST PRICE $22.99
%
- +
Check stock in other branches
We're sorry, we have no stock available at this branch. Please select a different branch.
Your Pick-up In Store branch is 1023 Main St, Vincennes
Add to quick list
Compare

Specifications

Weight

1.66lb

Height

2in

Width

4.35in

Length

5.4in

Amperage

30

Brand

Bussmann

Category

Cartridge Fuse

Certification

UL Listed

Class

RK5

Diameter

0.81 in.

Fuse Function

Time Delay

Fuse Type

Fusetron FRS-R Cartridge

Length

5 in.

Voltage

600

Description

Fusetron dual-element, time-delay current limiting fuses. Provide motor overload ground fault and short-circuit protection. When used in circuits subject to surge currents, such as those caused by motors, transformers, and other inductive components, these fuses can be sized close to full-load amperes to give maximum overcurrent protection. The time delay feature makes it possible to use fuse ampere ratings which are much smaller than those of nontime delay fuses. Provide a higher degree of short-circuits in which surge currents or temporary overloads occur. Helps protect motors against burnout from overloads. 600V. UL (Underwriter's Laboratories) listed, CSA (Canadian Standards Association) certified.
